JS.106006

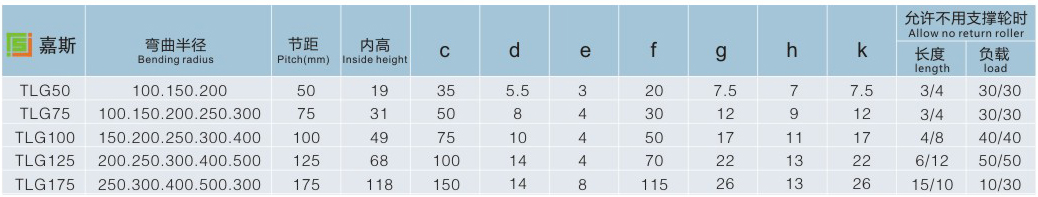

Cable carrier (TLG section steel)

TLG steel drag chain can bearing number, weight of cable and tubing, free suspended large, supporting wheel (allowed) and support plate can depend on customer needs to make, suitable for machine tools, mobile machinery. The bending radius of 50-600 - mm, chain plate height is 35-150 - mm, can be used freely.
TLG steel drag chain system to use the trip up to 32 m. Apply to all transmission ways. Can be shorten and lengthen. In addition, the bending radius can be obtained by changing the pin change.
Drag chain support plate width is 150 mm to 600 mm, the gap between the hole and the hole is 5 mm.
The height of the chain plate, that is, the height of the support plate, is determined by the maximum diameter of cable, machine tool operation, the maximum as the width of the drag chain of more than 300 mm, the length of the drag chain for stability reasons, when more than 4 m should consider to choose a bigger dress size specifications of the drag chain.
Want to choose according to the diameter of the cable bending radius and should achieve 10 times the diameter of the cable. Bending radius can be according to the choice of 50-600 - mm, given small can choose a smaller radius corresponding.
Drag chain length = ? travel + 4 bending radius, this is only applicable to when a fixed link is at the point of the journey.
Drag chain fixed according to the position of the machine tool of choice. Fixed Angle can be on the outside or inside of the drag chain of internal or external, usually connecting part within the drag chain, and to the peripheral.
